Over years of servicing every kind of UPS, we learned that UPS External Bypass Switches always lack in safety, functionality and ease of use. People hate to operate their bypass switch, because they are confusing, complicated and the safety features never work like they should.

For this reason, Tech Connect developed the X-Switch, a no-nonsense external bypass system that makes sense to everyone.  The X-Switch provides simple instructions and clear labeling to make using it safe and worry-free. With the premium X-Switch, you can transfer to bypass without ever dropping the critical load or damaging the UPS. We use vertically operated breakers, solenoid key release units (SKRU), a safety slide bar, optional guiding lights, model-specific instructions, a hinged main door to avoid accidents and a simple One-Line diagram.

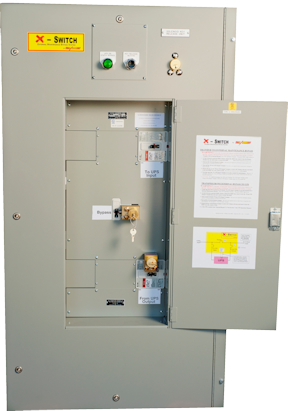

ECONOMY X-SWITCH (UP TO 1200A)

  • U.L. Listed
  • Cutler Hammer Thermal-Magnetic Breakers
  • Breakers Clearly Labeled
  • Breakers Behind Closed Door
  • Clear and Model-Specific Installation Instructions
  • Clear and Model-Specific User Instructions
  • Simple One-Line
  • Optional Safety Features:
    • Solenoid Key Release Unit (SKRU)
    • Kirk Keys

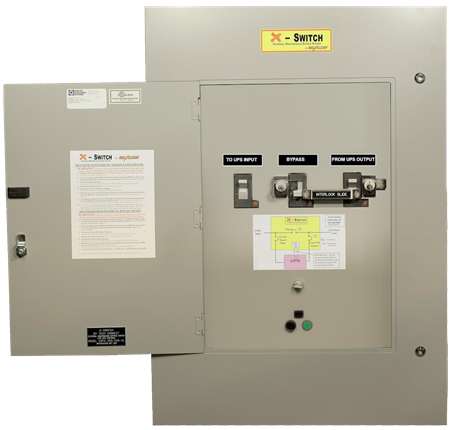

PREMIUM X-SWITCH (UP TO 1200A)

  • U.L. Listed
  • High Quality GE Electronic Trip Breakers
  • All Breakers Vertically Mounted and Clearly Labeled
  • Breakers Behind Closed Door
  • Clear and Model-Specific Installation Instructions
  • Clear and Model-Specific User Instructions
  • Simple One-Line
  • With the Optional Safety Features
    • Solenoid Key Release Unit (SKRU) with Kirk Keys
    • Safety Slide Bar (Forces Make-Before-Break)
    • Guiding Lights

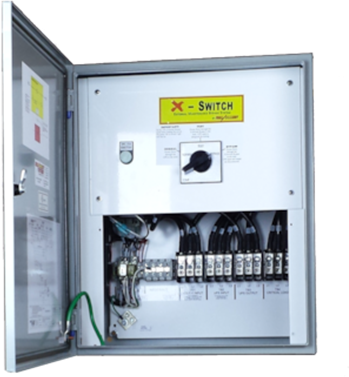

ROTARY X-SWITCH (FROM 40-500A, SINGLE OR THREE PHASE)

  • U.L. Listed
  • 100% Rated Heavy-Duty Cam Switch
  • Make-before-break safety feature to prevent an incorrect bypass
  • Switch Behind Closed Door
  • Clear and Model-Specific Installation Instructions
  • Clear and Model-Specific User Instructions
  • Simple One-Line

Custom features are available for your site requirements

  • Any Voltage or Current Rating
  • Wall Mount, Rack Mount or Floor Standing Cabinets
  • Internal TVSS
  • Internal Transformer
  • High kAIC Ratings
  • Output Distribution Breakers
  • Lockable Door
  • Extra Breakers for Load Bank, or Dual Input UPS
  • Different Brand Breakers (Premium Only)

Learn Why Electrical Engineers love the X-Switch?

Download PDF



Ray Ward - X-Switch Inventor/Founder of Tech Connect

Ray Ward is an electrical engineer and is the founder of Tech Connect.  He founded Tech Connect in 1994 and grew the company to become a large fish in a small pond.  Tech Connect has become the largest UPS sales and service company in Utah.

We are grateful for Ray Ward and his contribution to the field of critical power.  Ray designed the X-Switch and continues to consult Tech Connect on a regular basis.

A Maintenance Bypass Switch allows you to bypass your UPS in an emergency or for maintenance. Many companies hate to be down for even 1 min and request to put in solutions that will avoid downtime. The X-Switch is a make-before-break solution that ensures safety and a way to bypass the UPS correctly. Please contact one of our sales engineers to find out more information.
